Sub-6GHz&超宽带屏蔽箱
TC-5901CU

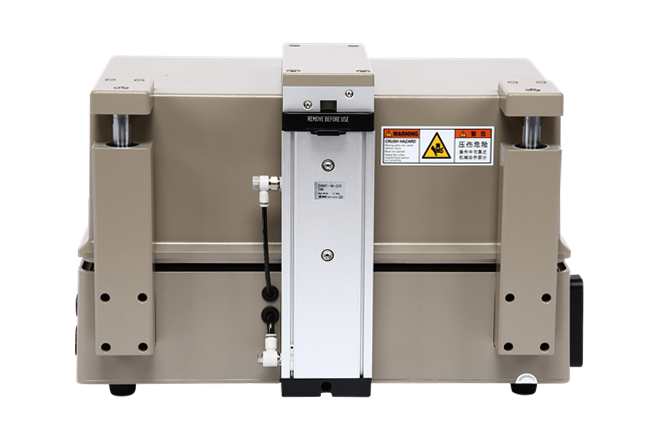

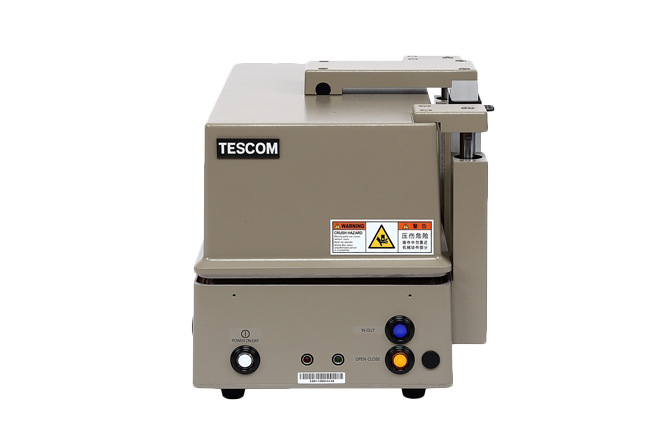

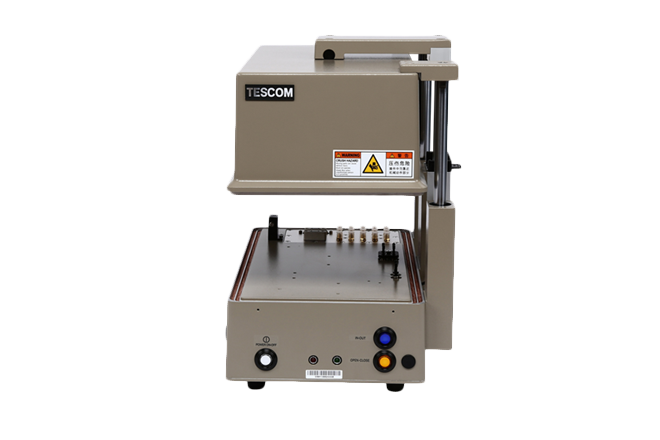

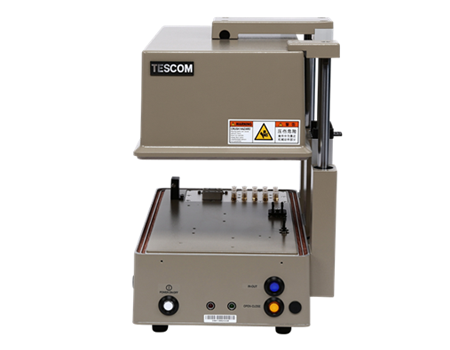

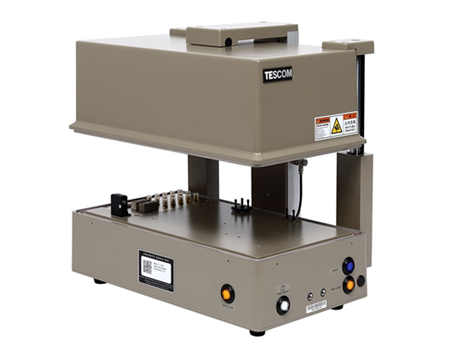

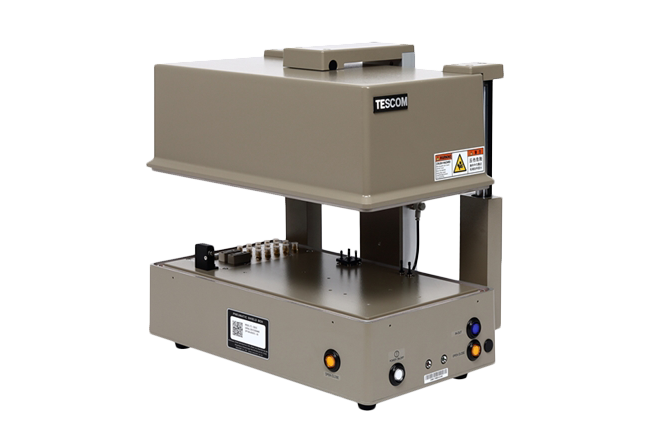

Sub-6GHz & UWB Pneumatic Shield Box TESCOM的TC-5901CU气动屏蔽箱适用于智能手机等小型设备的无线测试，门可利用气动压力自动开闭。 TC-5901CU在0.1GHz~12GHz的频率范围内提供屏蔽效果,不仅可用于LTE、WIFI、蓝牙、Zigbee等传统技术,还可用于5G、WIFI6E、UWB等前瞻性无线通信技术。 TC-5901CU可通过RS-232C和以太网实现远程控制，并通过PC程序实现其测量自动化系统。
申请报价
Features
- Reliable RF shielding from 0.1 GHz to 12 GHz
- Pneumatic control of lid operation and optional automatic test fixture motions
- EMI filters on all data ports and power lines
- Remote operation by RS-232C

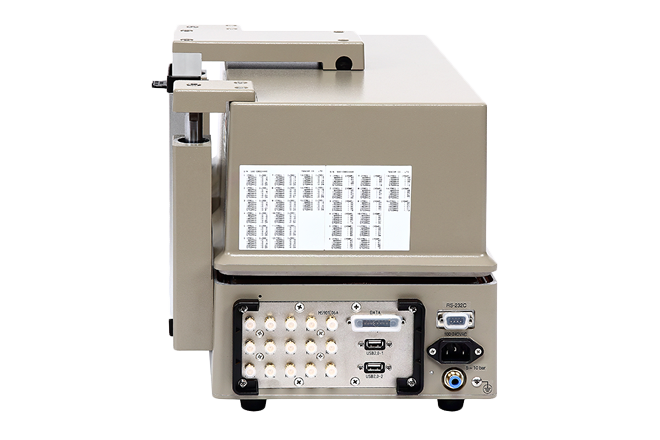

- Modular I/O design for possible customization of data and RF connection
- Fixture-control air outputs for custom test fixture
- Red and green LED’s for pass/fail indication
- Dual pressure control and lid down sensor for safety
