全球导航卫星系统测试器

TC-2800A

TC-2800A
TC-2800A
TC-2800A

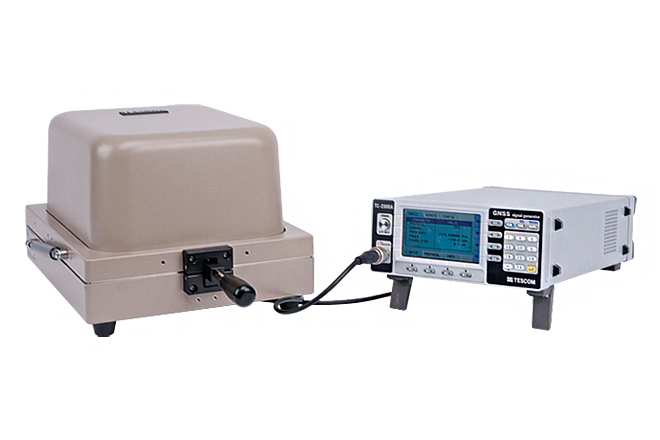

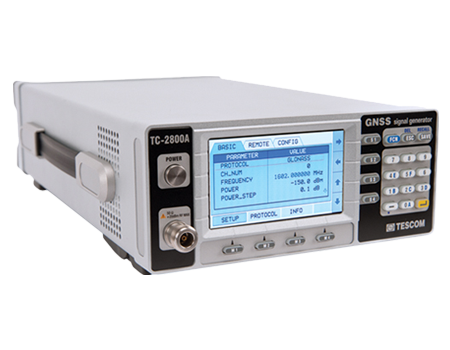

TESCOM's TC-2800A GNSS信号发生器可以产生GPS、GLONASS和BeiDou信号，设计能够测试生产线上的接收器质量。支持通过USB接口连接PC，此外，TC-2800A还搭载设备本身作为独立设备运转的LCD显示器，可以不使用PC。轻薄的产品尺寸大约是货架的一半/2U大小，可节约大量安装空间。

申请报价

Benefits and Key Features

  • TESCOM's  TC-2800A GNSS signal generator is
    designed to measure the quality of the receiver in the production line by generating GPS, GLONASS and BeiDou signals. The user can set the signal conditions through the frontal LCD and keypad without PC, and the signal generator supports USB interfaces and commands for automatic production. Lightweight and slim, the product is the size of half the rack/2U; thus saving installation space.
    TC-2800A is an economically efficient, optimal solution for the reliable measurement of C/NO and reception sensitivity of single or multiple DUTs in the GNSS receiver production line.
  • Single-channel GPS L1 C/A
  • Single-channel GLONASS L1 C/A
  • Single-channel BeiDou B1
  • Wide dynamic power range from 0 to -130 dBm

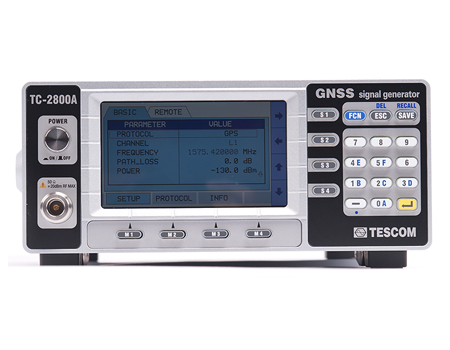

  • Signal data display through color LCD
  • Easy control through frontal keypad without PC
  • Remote control through USB Port
  • Easy firmware upgrade through USB port
  • Lightweight and slim, size of half the rack/2U
