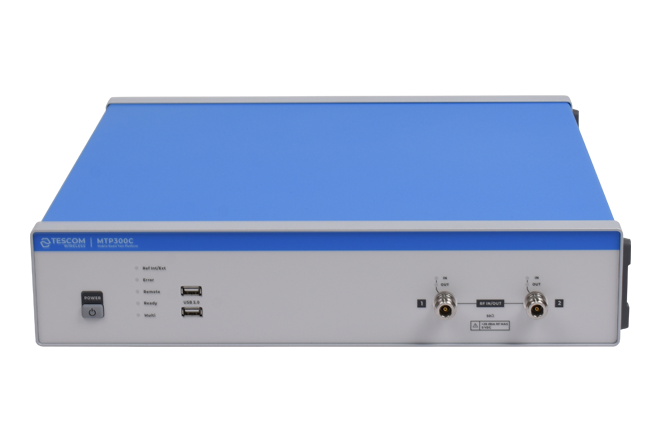

蓝牙/无线测试器

MTP300C

MTP300C
MTP300C
MTP300C

BT/WLAN/ZigBee 连接测试仪
一箱多协议测试仪，用于无线局域网信号、蓝牙信号和非信号测试。 软件定义 基于无线电的可伸缩性 宽频段从650兆赫到7.2千兆赫 适用于大规模生产和研发测试的各种无线设备。 适用于2U全机架尺寸的生产线。 直观 GUI 和可选的定制测试平台 (CTP) SCPI 标准命令可最大限度地缩短生产线测试系统设置所需的时间。

申请报价

Benefits and Key Features

  • MTP300C是在迅速发展的无线通信技术环境下，对各种移动通信技术标准，通过One Box形态的单一设备，可以全部进行测试的平台式综合测量设备。MTP300C可以迅速、精确测量，符合提高轻薄和方便性等市场要求的设计，在各种无线通信仪器的生产和开发上，能够进行迅速精准测试的最佳产品。
  • One Box Multi-Protocol Tester
  • Wide Band Support ( 2400MHz~2500MHz, 4900MHz~7200MHz)
  • SDR-based Expandability
  • Optimal System for Mass Production
  • Provision of Customer-Tailored Test
  • Economical


    Diverse Wireless Communicates Technologies Supported by 1 Set of Equipment

  • Wide Frequency Range (2400MHz~2500MHz, 4900MHz~7200MHz)
    • Covering wide range of frequency from 2400MHz~2500MHz, 4900MHz~7200MHz, it is possible to choose the frequency range for various standards
  • Expandability Based on SDR (Software Defined Radio)
    • MTP300C can measure expanding variety of RF wireless technologies through software upgrade without hardware change

    • WLAN and Bluetooth Test Support

  • WLAN IEEE802. 11a/b/g/n/p/ac/ax Test Support (Non-signaling Test)
    • IEEE802. 11 a/b/g/n support (S300C-W01 option)
    • IEEE802. 11 ac 80 & 160 MHz bandwidth support (S300C-W02 option)
    • IEEE802. 11p support (specialized in vehicle communications system) (S300C-W03 option)
    • IEEE802. 11ax 160 MHz Bandwidth, 1024-QAM support (Wi-Fi 6E, 2.4 GHz & 5 GHz&6GHz) (S300C-W04 option)
    • Provides WLAN-specialized measuring functions
    • IEEE802. 11 a/b/g/n support (S300C-W01 option)
      • (Spectrum, EVM Constellation, Power-Time, EMV vs Carrier, Spectral Flatness, Spectrum Mask)
    • Provides Scalar function to measure RF test items frequently used in mass production at once.
  • Support Bluetooth v5.3 Standard
    • Bluetooth v5.3 Specification Compliant
    • Bluetooth signaling test support
    • Bluetooth non-signaling test support
    • Provides BR, EDR test cases and diverse Bluetooth measuring functions
    • Bluetooth Low Energy test cases and measuring functions
    • Supports Audio (SCO Link) Functional Testing (Headset, A2DP audio profile)
  • ZigBee IEEE802. 15. 4 Support
    • IEEE802. 15. 4 OQPSK PHY support
    • Provides ZigBee-specialized measuring functions (Spectrum, Power Time, IQ Constellation, EVM)
  • Optimized for Mass Production
    • With two RF ports supporting dual or parallel test, it fits for various producing solutions to cut the cost.

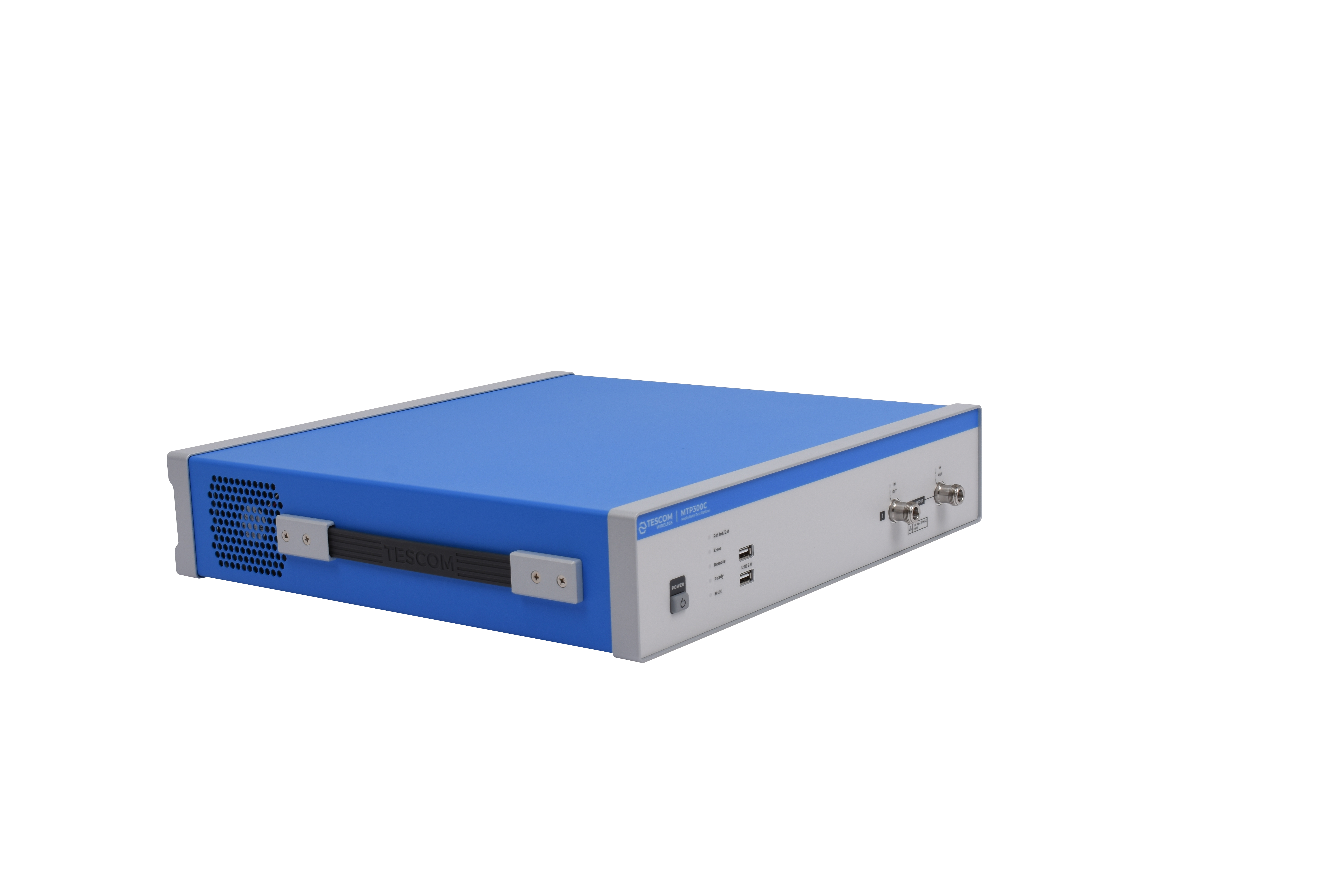

    • Easy to use in production lines with 2U full rack size.
    • Expandable to many wireless standards and economical.
  • Easy Remote Controlling System
    • MTP300C provides easy remote control through VISA library. Also, its SCPI standard commands can minimize the effort and time required to establish a test system in production line.
  • Provides Custom Made Testing Solution

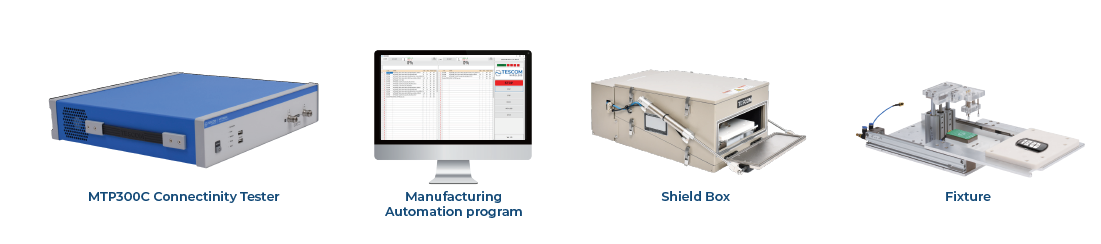

    • TESCOM offers custom-made wireless measuring environment for each customer to help mobile device production. In a comprehensive measuring perspective rather than one testing instrument, the optimal testing solution is provided with our shield boxes, antenna couplers, fixtures, and automation software.
  • Low Cost
    • The most effective solution at the lowest cost.
