OTA mini测试暗室系统

TC-5571BM

TC-5571BM
TC-5571BM
TC-5571BM
TC-5571BM
TC-5571BM

mmWave OTA Chamber

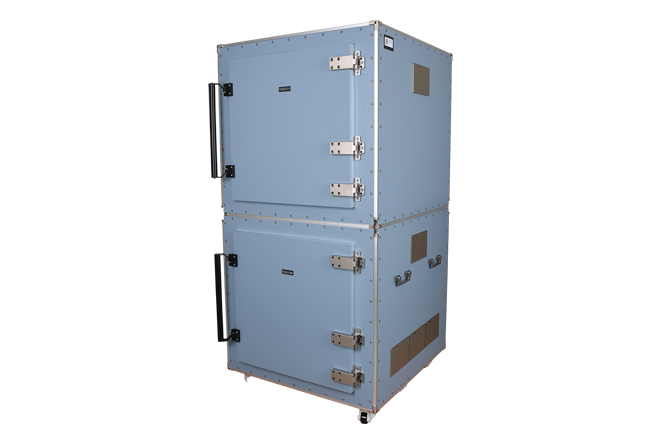

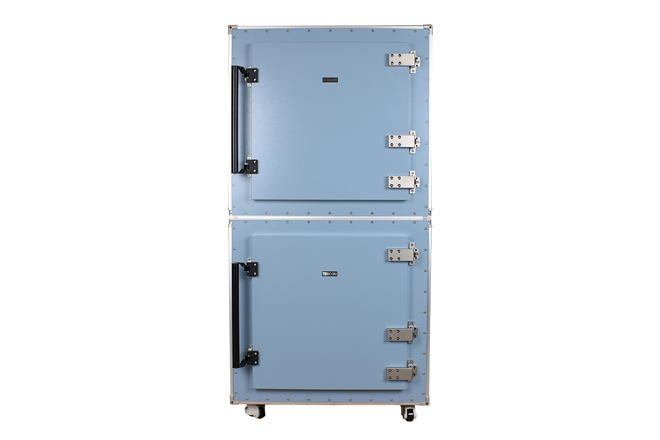

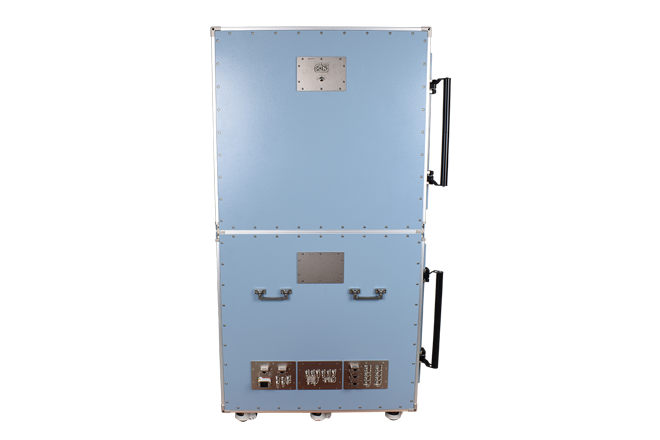

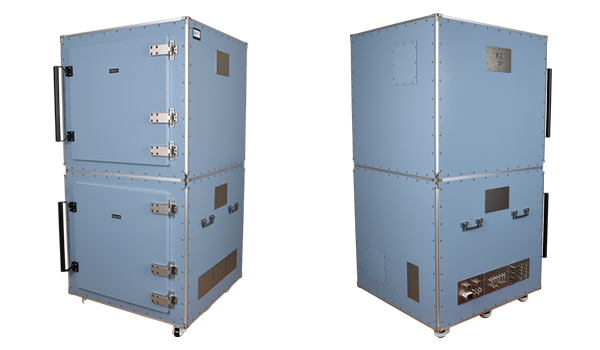

TC-5571BM是18GHz~67GHz频率范围规格的 mmWave OTA(Over the Air)室，在mmWave带宽范围内，用于OTA测试。室内搭载mmWave带宽范围内最优化的吸收器。TC-5571BM适合多种测试环境，同时会提供定制接口和 I/O 接口选项。TC-5571BM提供2轴旋转夹具选项，而能够三维辐射模式测量。

申请报价

Features

  • Specially designed chamber for antenna OTA(Over-the-air) test of a DUT in the millimeter wave band

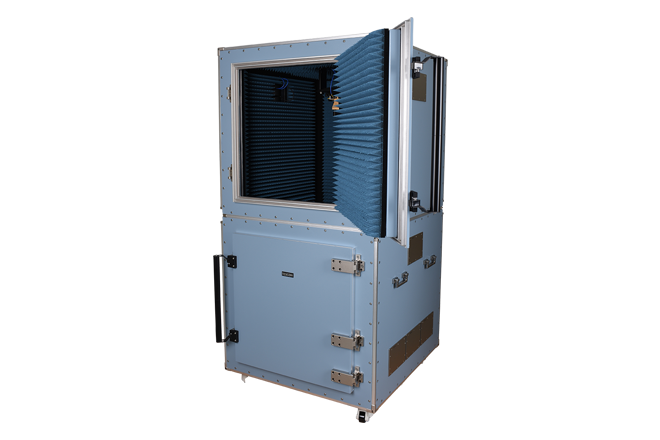

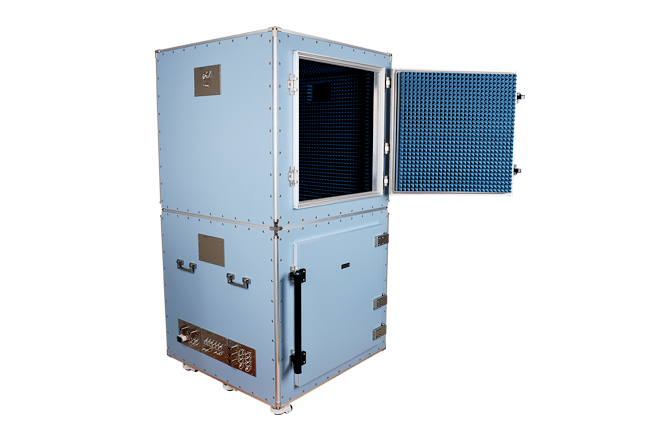

    • Lined with pyramidal absorber optimized in millimeter wave band, to provide optimal mm Wave OTA test environment
    • Shielding Performance > 60 dB
    • Easy-to-move wheels attached
  • Equipped with rotator/positioner for 3D radiation pattern measurement
    • The positioner can rotate in 2-axis (El or Az) rotation system (-90° ~ +90°)
    • Mechanically designed to prevent twisting of cables using slip rings and RF Thru connector.
    • Internal DUT Holder and Test Antenna can be customized
    • Adjustable distance between DUT and TEST antenna (about 80 mm)
  • Various horn antennas can be mounted in millimeter wave band : 18 GHz ~ 67 GHz
    • The antenna can be replaced in module type
