OTA mini测试暗室系统

TC-5570PM

TC-5570PM
TC-5570PM
TC-5570PM
TC-5570PM

mmWave OTA Chamber

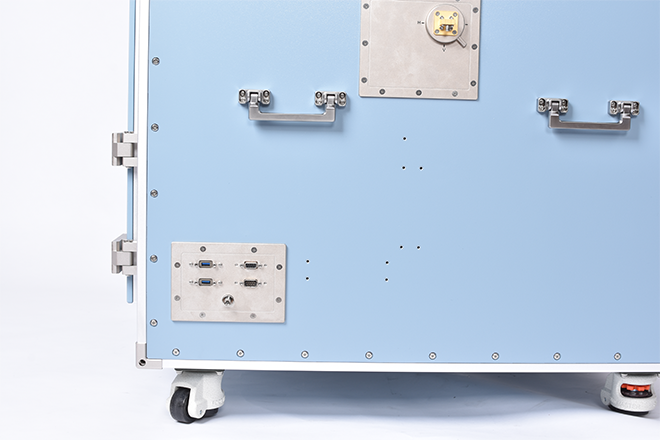

TC-5570PM是18GHz~67GHz频率范围规格的 mmWave OTA(Over the Air)室，在mmWave带宽范围内，用于5G装置天线的OTA测试。室内搭载mmWave带宽范围内最优化的吸收器。TC-5570PM适合多种测试环境，同时会提供定制接口和 I/O 接口选项。TC-5570PM提供2轴旋转夹具选项，而能够三维辐射模式测量。

申请报价

Features

  • Small chamber specially designed for OTA testing of a DUT antenna in the millimeter wave band
    • Provides OTA test environment applying with the optimized absorber in millimeter wave band
    • Operating frequency range 18 GHz ~ 67 GHz
    • Shielding Performance > 60 dB
    • Easy-to-use wheel mounted

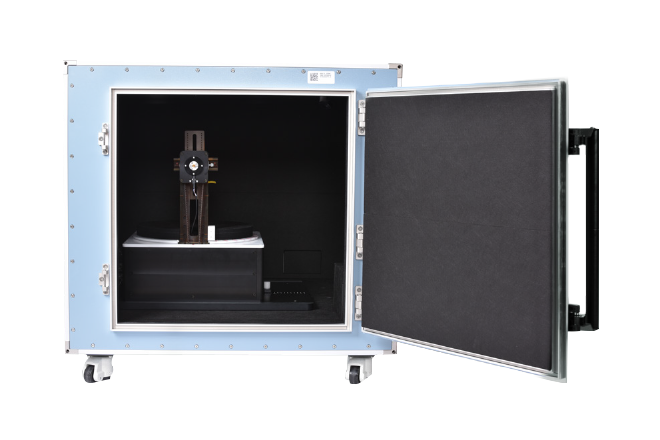

  • Rotation fixture for 3D radiation pattern measurement
    • 2 axis rotating system
    • Mechanically designed to avoid cable twist using slip ring and RF rotary joint
  • Quad Ridged Horn Antenna installed : 18 GHz ~ 40 GHz
    • The antenna can be replaced in module type
    • Passive Antenna performance test
