Benefits and Key Features

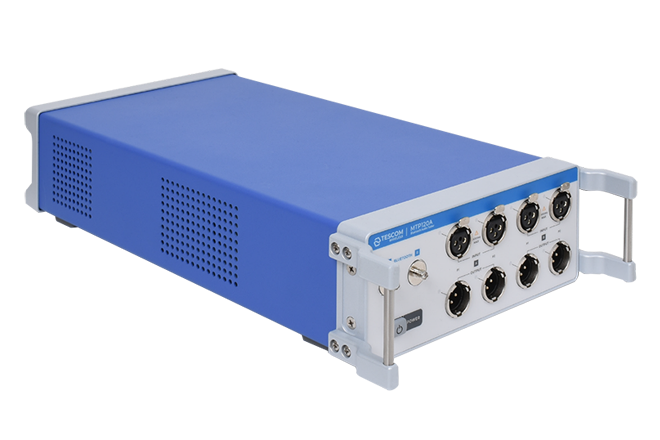

• TESCOM's MTP120A is a Bluetooth audio tester.
  This product is developed to test the audio performance after establishing a Bluetooth connection with the DUT using the built-in Bluetooth Dongle of MTP120A. MTP120A is an integrated audio signal generator and signal analyzer. It can generate a 20 Hz to 20 kHz tone signal in units of 0.1 Hz. Signal Analyzer can measure Frequency Response, Tone Level and Distortion (SNR, SINAD, THD) in once. In particular, MTP120A can connect 2 Bluetooth DUTs at the same time and is composed of 4 input ports and 4 outputs. It is designed to satisfy the necessary requirements for the development stage to production line testing.

• Bluetooth 2ch connection and measurement in once
• Supports Bluetooth A2DP, HFP, HFS, SPP, AVRCP protocol
• Signal Generator and Signal Analyzer integrated into one device
• Simple audio performance test: simultaneous measurement of Frequency, Tone Level, SNR, THD, SINAD
• Supports input 4 ports/output 4 ports optimized for Bluetooth Ear Bus production line
• Provides Bluetooth function testing (device name, battery level, MAC address, volume, RSSI power value, etc.)
• Convenient remote control system
• Easy to move and test with small size and lightweight
• Analysis Software
• Provides control function of Generator / Analyzer
• Provides GUI to analyze signals in the Time domain / Frequency domain
• Easy to save measured graphs as data (.csv)

• Provides customized Audio Test Solution
  • It connects our various Audio shield box, speaker, microphone, fixture, etc and provides complete testing solutions
