Sub-6GHz & UWB Shield Boxes

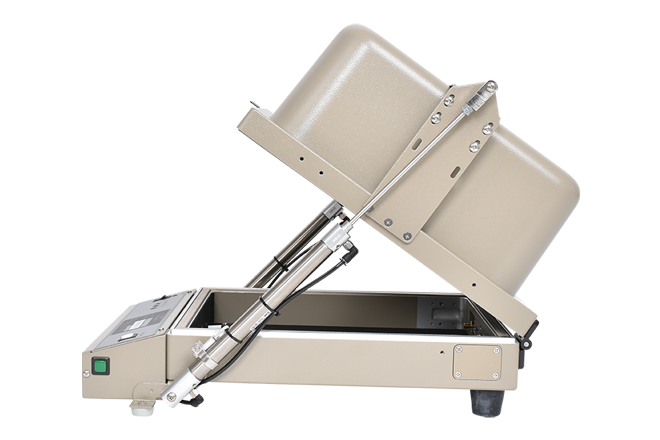

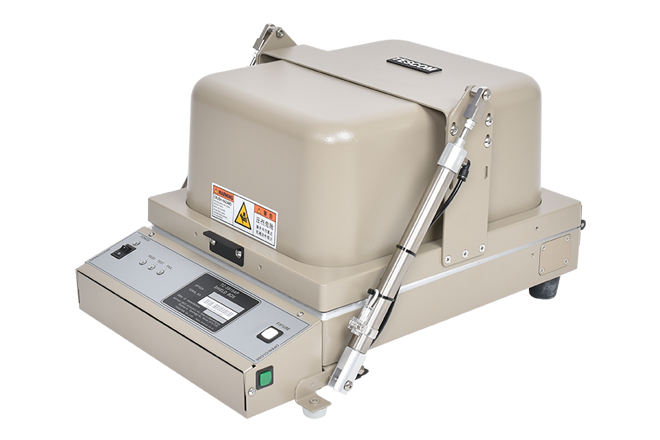

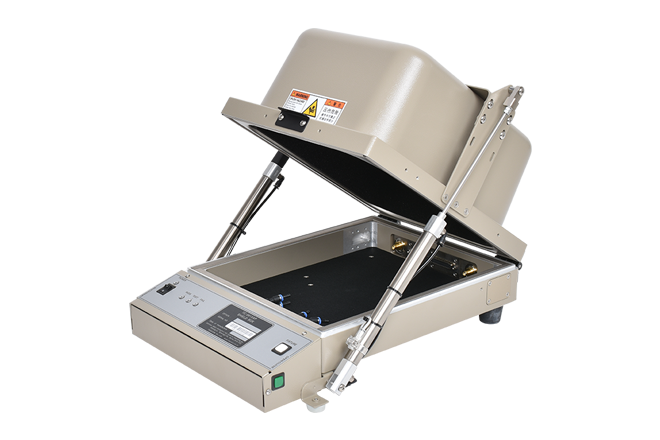

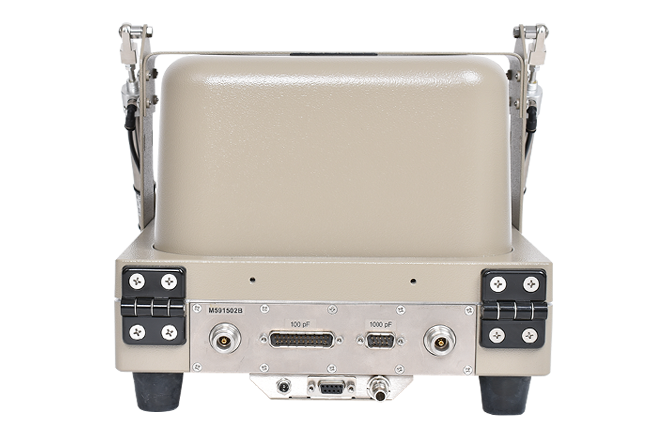

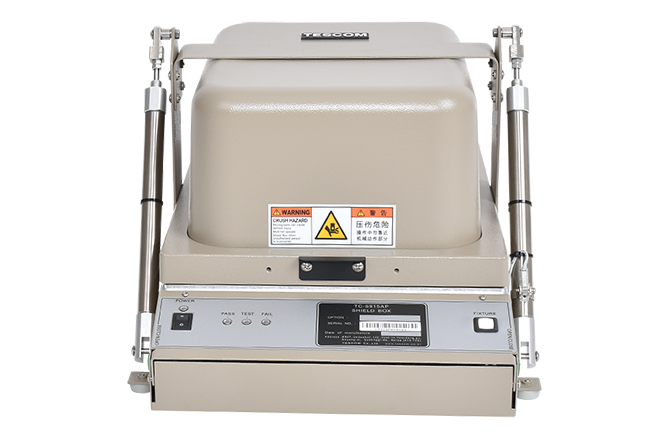

TC-5915APU
Sub-6GHz & UWB Pneumatic Shield Box TC-5915APU is the pneumatically operated version of TC-5915AU, providing shielding capabilities up to 12 GHz. The size of the TC-5915APU is a popular choice for performing RF testing on small wireless and mobile devices. In addition to shielding traditional 2.5 GHz technologies like WIFI, Zigbee, and Bluetooth, this shield box supports a range of up to 12 GHz to enable testing on forward-looking technologies such as 5G, UWB, and WIFI 6E variants. The box can be operated remotely via remote control, while additional features like the dual pressure control lid and sensor ensure enhanced user safety.
Get a Quote
Features
- Reliable high RF shielding from 0.1 GHz to 12 GHz
- Pneumatic control of lid open/close and optional test fixture motions
- EMI filters on all data ports and power line
- Easily customizable to suit various test needs
- Red and green LEDs for PASS/FAIL indication
- Remote operation by RS-232C / Ethernet
