mmWave OTA Chamber

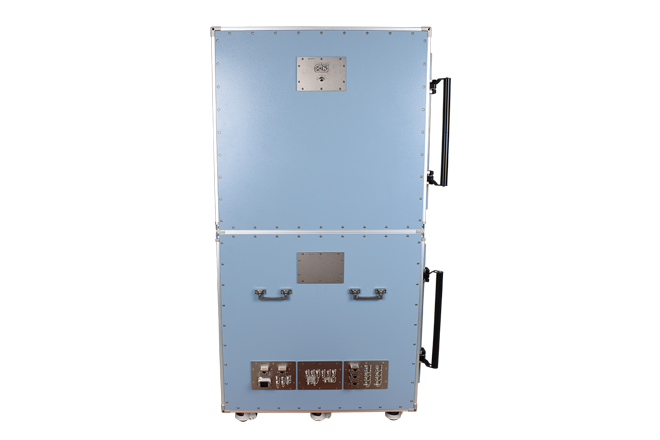

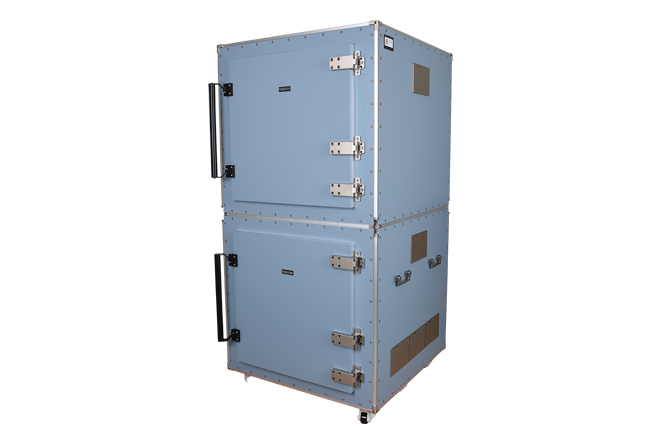

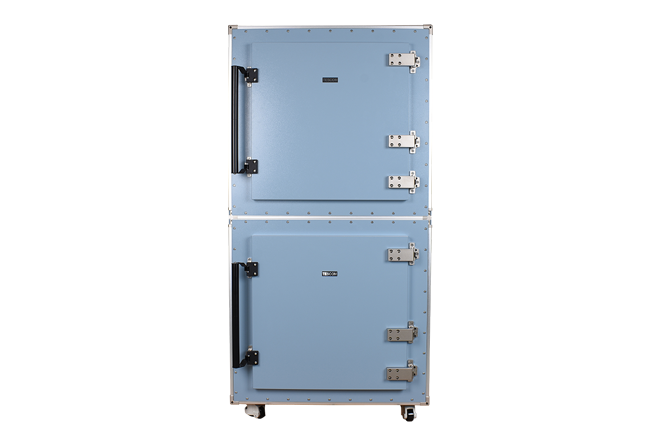

TC-5571BM is a mmWave OTA chamber specifically designed for over the air (OTA) testing in far-field conditions. As a vertical rectangular chamber using a pyramidal absorber optimized for mmWave OTA tests, it provides a solution for the performance testing of mmWave antennas.

Get a Quote

Features

  • Specially designed chamber for antenna OTA(Over-the-air) test of a DUT in the millimeter wave band

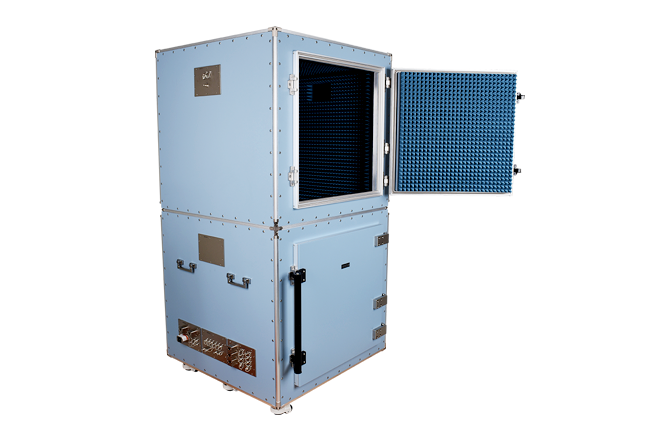

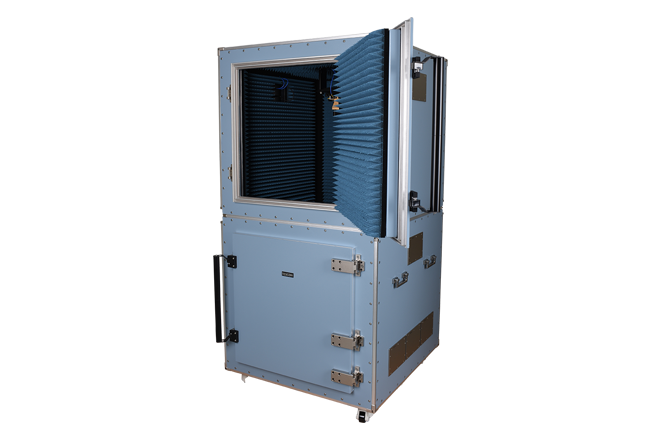

    • Lined with pyramidal absorber optimized in millimeter wave band, to provide optimal mm Wave OTA test environment
    • Shielding Performance > 60 dB
    • Easy-to-move wheels attached
  • Equipped with rotator/positioner for 3D radiation pattern measurement
    • The positioner can rotate in 2-axis (El or Az) rotation system (-90° ~ +90°)
    • Mechanically designed to prevent twisting of cables using slip rings and RF Thru connector.
    • Internal DUT Holder and Test Antenna can be customized
    • Adjustable distance between DUT and TEST antenna (about 80 mm)
  • Various horn antennas can be mounted in millimeter wave band : 18 GHz ~ 67 GHz
    • The antenna can be replaced in module type
