Benefits and Key Features

• In the environment of ever-changing wireless communications technologies, TESCOM enables you to test a variety of wireless technology standards with one-box platform type equipment, MTP 300A.
  MTP300A is not only fast and accurate but also light and user-friendly to work with. It is an optimized product to run quick and precise tests in mass production as well as R&D of diverse wireless devices.
  MTP 300A, with its SDR-based system, can change the target of measurement by either modifying or upgrading loaded software without hardware change. This makes MTP300A to be efficient and economical testing system in the long term, while sufficing various needs of customers.

• One Box Multi Protocol Tester
• WIDE BAND of 650 MHz ~ 6 GHz Support
• SDR-based Expandability
• Optimal System for Mass Production
• Provision of Customer-Tailored Test
• Economical

Diverse Wireless Communicates Technologies Supported by 1 Set of Equipment

• Wide Frequency Range (650 MHz ~ 6 GHz)
  • Covering wide range of frequency from 650 MHz to 6 GHz, it is possible to choose the frequency range for various standards
• Expandability Based on SDR (Software Defined Radio)
  • MTP300A can measure expanding variety of RF wireless technologies through software upgrade without hardware change

WLAN and Bluetooth Test Support

• WLAN IEEE802.11a/b/g/n/p/ac/ax Test Support (Non-signaling Test)
  • IEEE802.11a/b/g/n Support (S300A-W01 option)
  • IEEE802.11ac 80 & 160 MHz bandwidth support (S300A-W02 option)
  • IEEE802.11p support (specialized in vehicle communications system) (S300A-W03 option)
  • IEEE802.11ax 160 MHz Bandwidth, 1024-QAM support (Wi-Fi 6, 2.4 GHz & 5 GHz) (S300A-W04 option)
  • Provides WLAN-specialized measuring functions (Spectrum, EVM Constellation, Power-Time, EMV vs Carrier, Spectral Flatness, Spectrum Mask)
  • Provides Scalar function to measure RF test items frequently used in mass production at once

• Bluetooth Low Energy 5.1 Support
  • Provides BLE RF test cases and measurement
  • Various BLE test support: direct test, non-signaling test, and advertising test
  • BLE OTA test support: Output Power, Frequency Error, PER
  • BLE 5.1 AoA/AoD Support
• Classic Bluetooth v5.1 Support
  • Bluetooth Signaling Test Support
  • Bluetooth Non-Signaling Test Support
  • Provides BR, EDR test cases and diverse Bluetooth measuring functions
  • Provides audio test through audio profile
• Zigbee IEEE802.15.4 Support
  • IEEE802.15.4 OQPSK PHY support
  • Provides ZigBee-specialized measuring functions (Spectrum, Power Time, IQ Constellation, EVM)
  • Provides Zigbee Transmitter Tests 및 Receiver Tests functions

Optimized for Mass Production

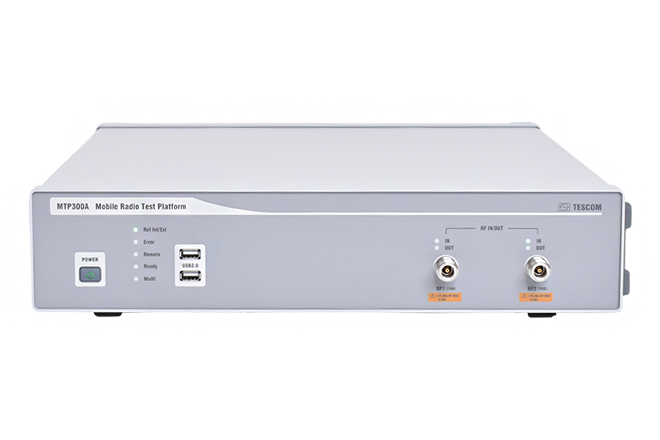

• • With two RF ports supporting dual or parallel test, it fits for various producing solutions to cut the cost.

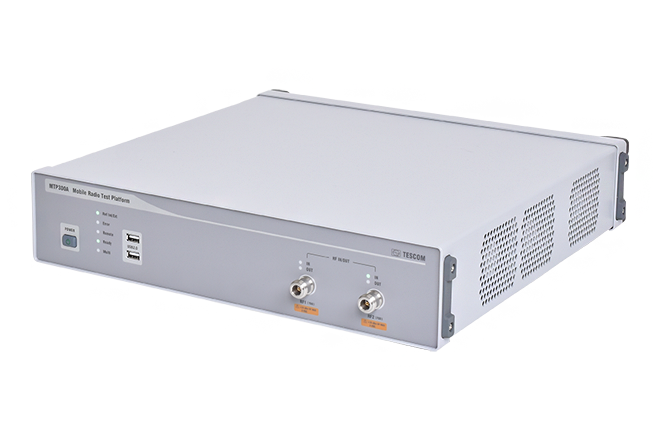

  • Easy to use in production lines with 2U full rack size.
  • Expandable to many wireless standards and economical.

Easy Remote Controlling System

• • MTP300A provides easy remote control through VISA library. Also, its SCPI standard commands can minimize the effort and time required to establish a test system in production line.

Provides Custom Made Testing Solution

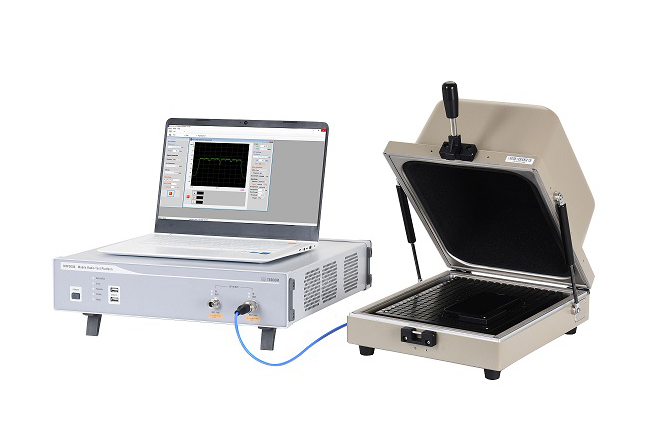

• • TESCOM offers custom made wireless measuring environment for each customer to help mobile device production. In comprehensive measuring perspective rather than one testing instrument, the optimal testing solution is provided with our shield boxes, antenna couplers, fixtures, and automation software.

Low Cost

• • The most effective solution at the lowest cost.
