Motorized Positioner Systems

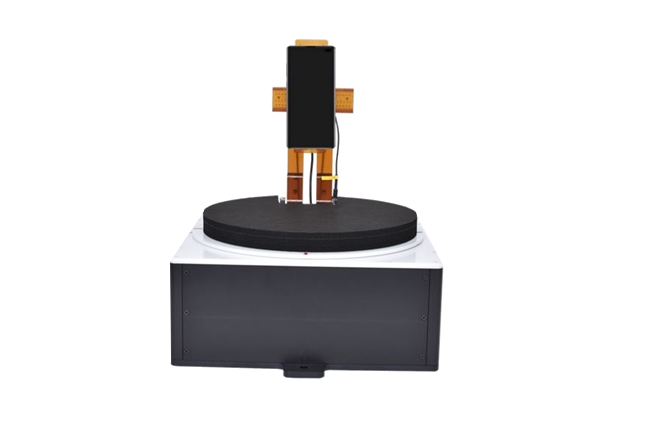

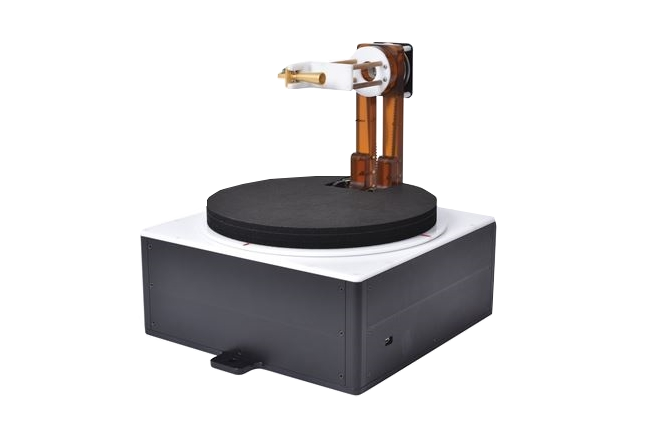

TC-5500A 3D Rotator

TC-5500A 3D Rotator
TC-5500A 3D Rotator

Dual-Axis DUT Positioner
테스콤의 3D Rotator는 ±1° 이내의 정밀도와 반복 측정의 신뢰성을 제공합니다. DUT의 최적 위치 선정을 하기 위해, DUT의 안테나 위치에 따라 DUT 홀더를 X/Y/Z 축으로 쉽게 조정할 수 있으며 이동 시 레일 구조로 인하여 안정적으로 이동할 수 있습니다.

견적 요청

Features

  • Rotation fixture for 3D radiation pattern measurement
  • Elevation and Azimuth, 2-axis rotation system
  • Mechanically designed to avoid cable twist using slip ring and rotary joint
  • Each part is designed and manufactured considering permittivity
  • Tick mark on the Cradle Base
